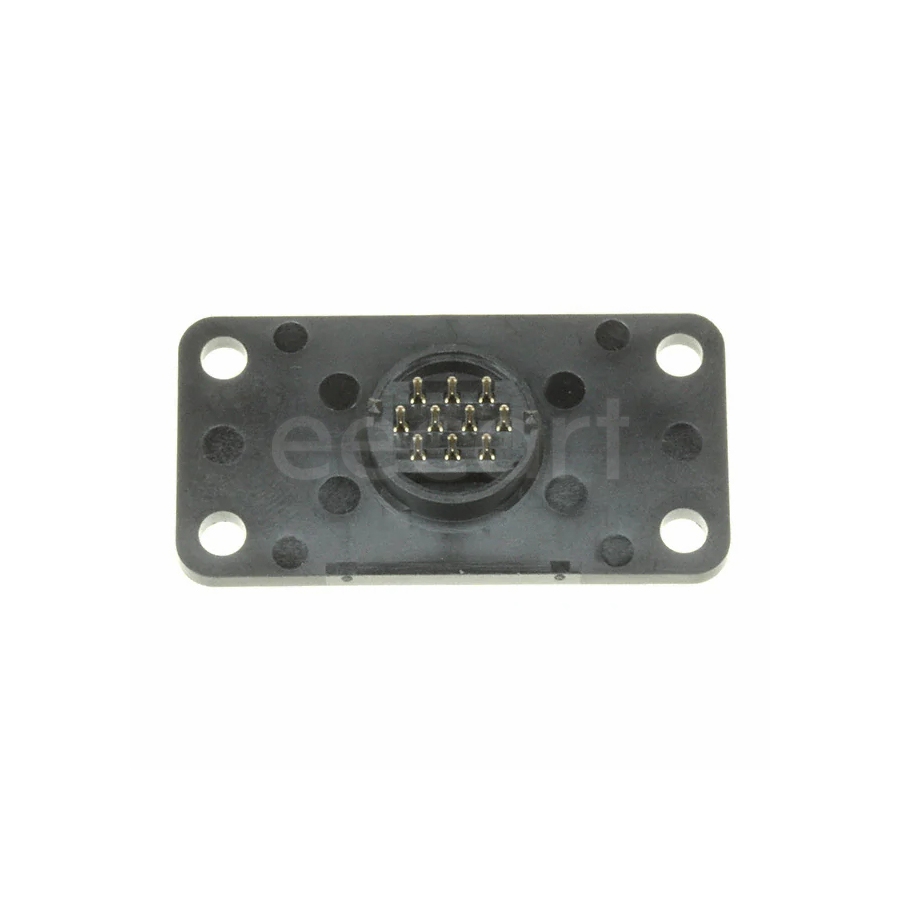

JN1AS10UL1
Manufacturer:
JAE Electronics
Mfr.Part #:
JN1AS10UL1
Datasheet:
Description:
Circular Connectors Through Hole Female Solder Circular, Receptacle
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Tray |
| Voltage Rating | 200 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 3 A |
| Orientation | Straight |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Body Material | Metal |
| Connector Type | Circular, Receptacle |
| Number of Positions | 10 |
| Insulation Material | Plastic |
| Fastening Type | Push, Twist |
| Plating | Copper |
| Contact Gender | Female |
| IP Rating(Ingress Protection) | IP67 |
Stock: 87
Distributors
pcbx
pcbxUnit Price$2.97182
Ext.Price$2.97182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.97182 | $2.97182 |
| 10 | $2.52779 | $25.27790 |
| 25 | $2.36914 | $59.22850 |
| 50 | $2.25600 | $112.80000 |
| 100 | $2.14826 | $214.82600 |
| 300 | $2.02969 | $608.90700 |
| 500 | $1.91766 | $958.83000 |
| 1000 | $1.82620 | $1826.20000 |
